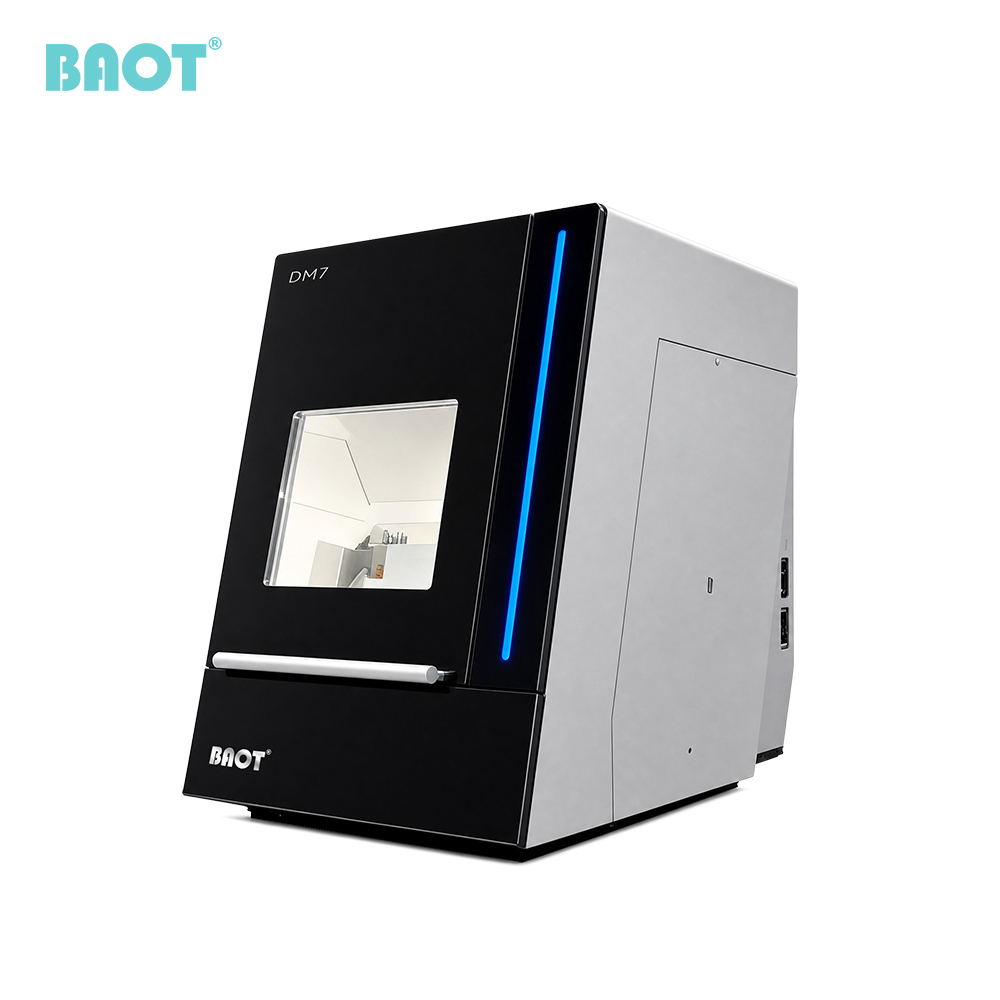

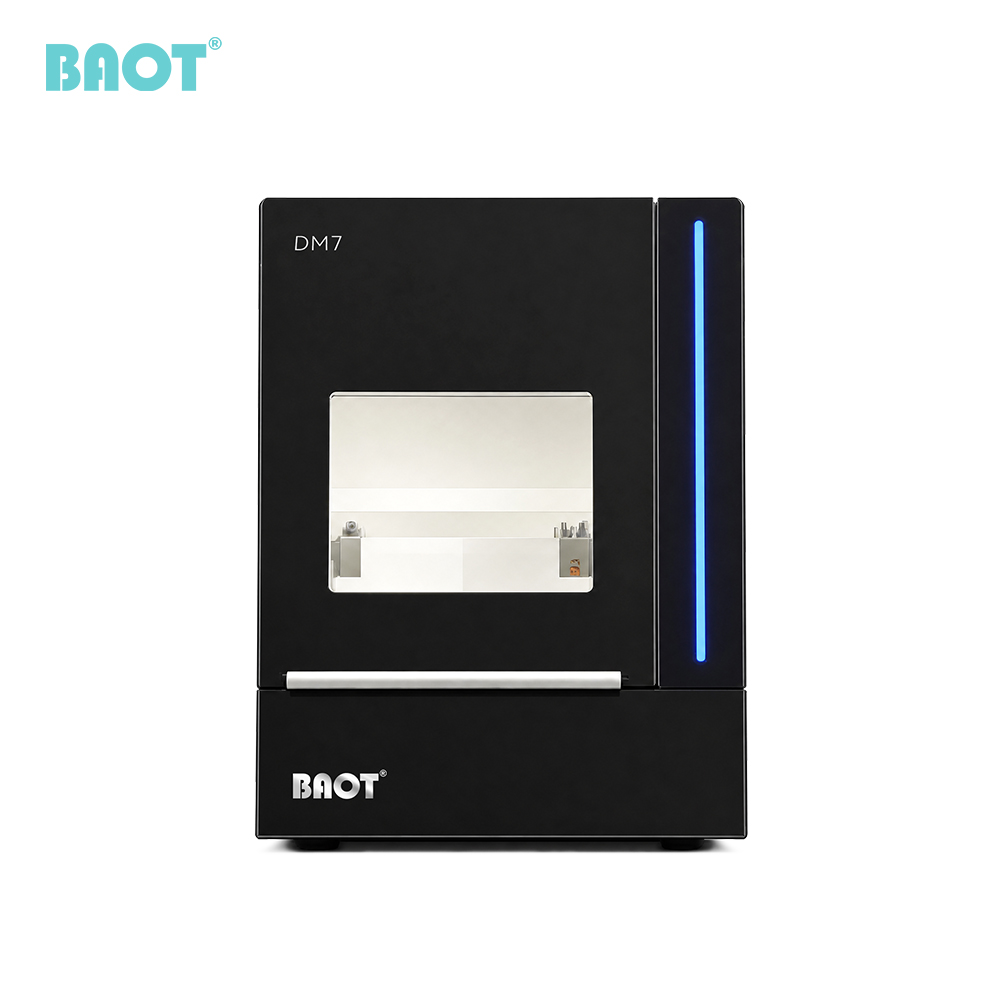

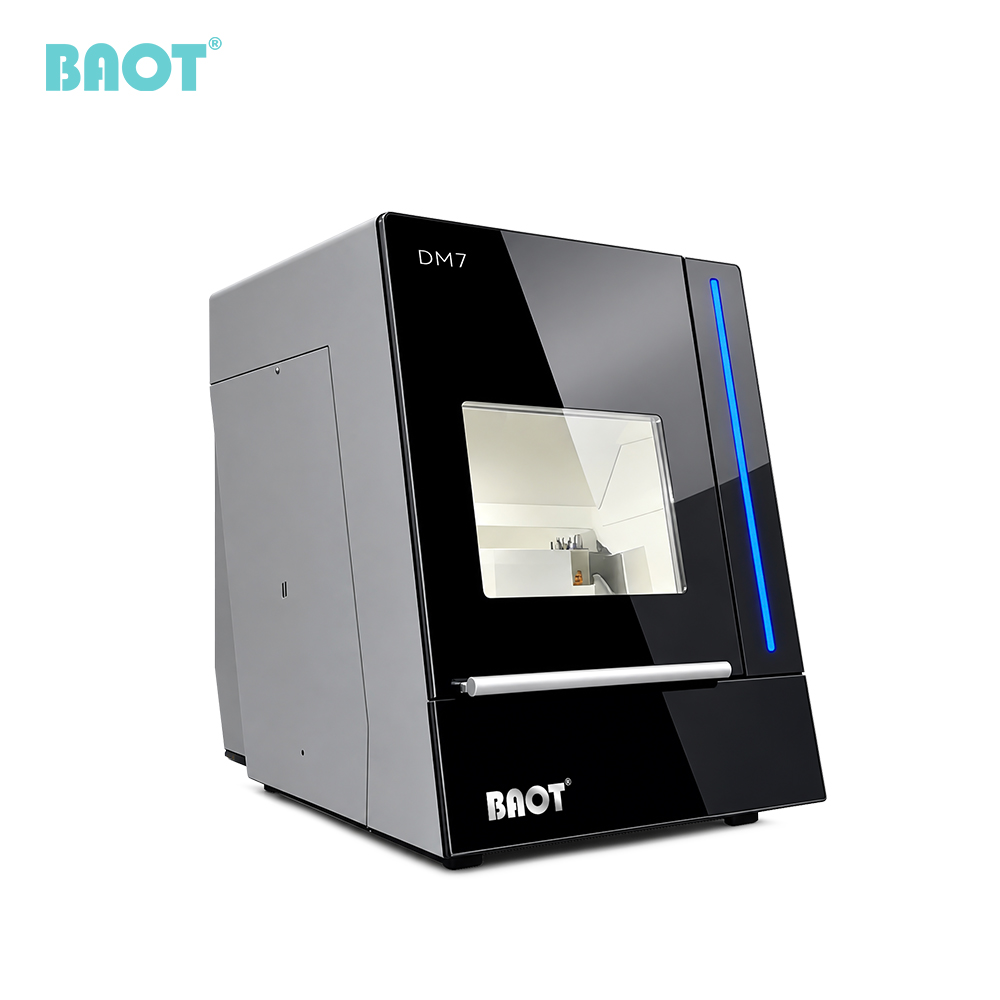

BAOT DM7 Air-Free 5-Axis Dental Dry Milling Machine

BAOT DM7 Air-Free 5-Axis Dental Dry Milling Machine

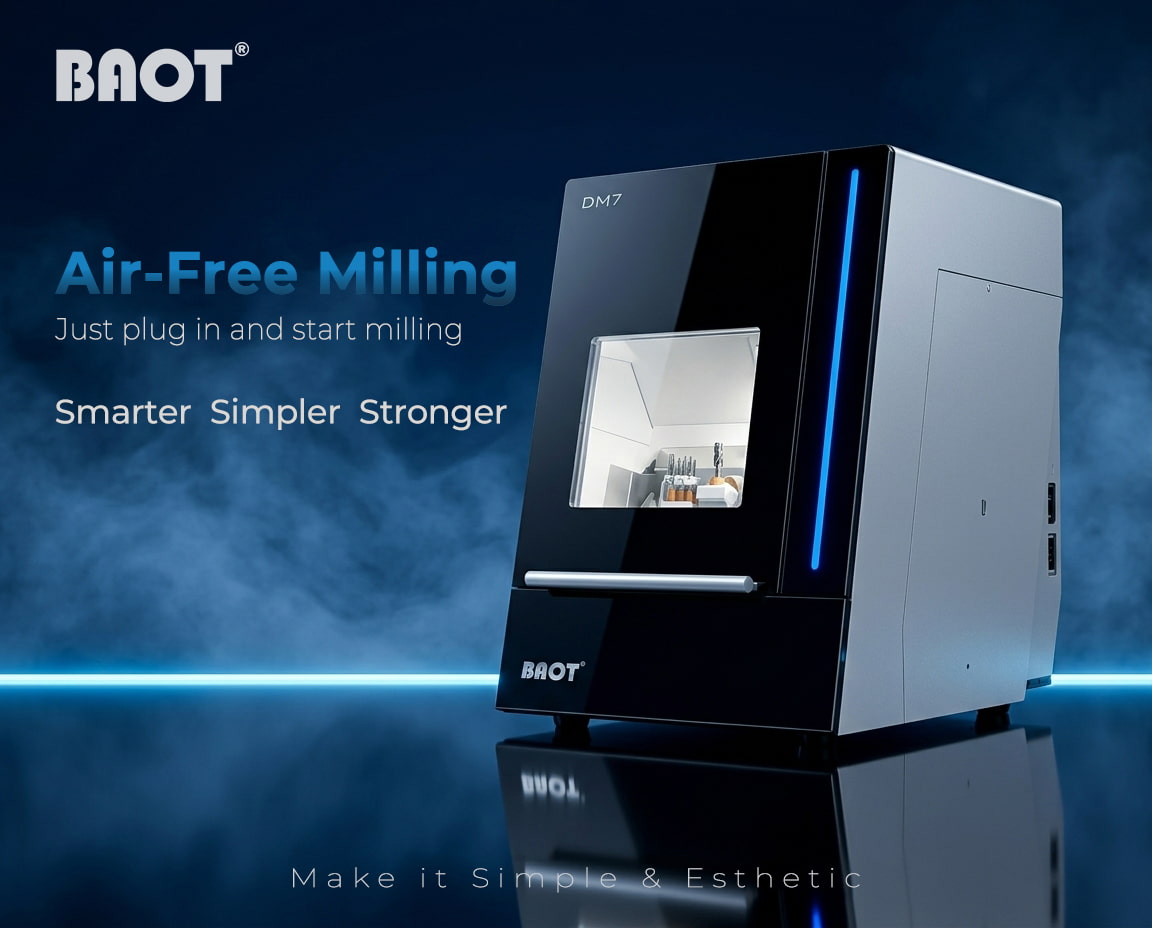

No External Air Compressor Required.

The BAOT DM7 is a 5-axis dry dental milling machine featuring an air-free electric spindle, designed to simplify equipment setup and support efficient dental CAD/CAM production. With a spindle speed of up to 60,000 rpm, an 11-tool automatic changer, and flexible connectivity, the DM7 offers a streamlined milling solution without requiring an external air compressor for spindle operation.

Why Choose BAOT DM7 Dry Milling Machine?

No Compressor Required

An air-free electric spindle eliminates the need for a compressed-air supply, simplifying installation and reducing air-system maintenance.

5-Axis Simultaneous Milling

Simultaneous movement across five axes supports multi-angle machining for complex dental restoration geometries.

60,000 rpm Electric Spindle

With a maximum spindle speed of 60,000 rpm and a rated power of 500 W, the DM7 is designed for high-speed processing of dental materials.

11-Tool Automatic Changer

The 11-tool magazine supports automatic tool changes, while tool-length measurement enables tool-breakage detection.

Disc and Block Processing

Accommodates discs up to 98.5 mm in diameter and 10–30 mm in height, as well as blocks up to 40 × 20 × 20 mm.

Smart Monitoring and Connectivity

Built-in LED lighting, an intelligent light bar, and Ethernet/Wi-Fi connectivity support convenient operation and machine-status monitoring.

What Can You Mill?

What Can You Create?

Crown & Bridge

Implant

Removable

Flexible Processing for Dental CAD/CAM

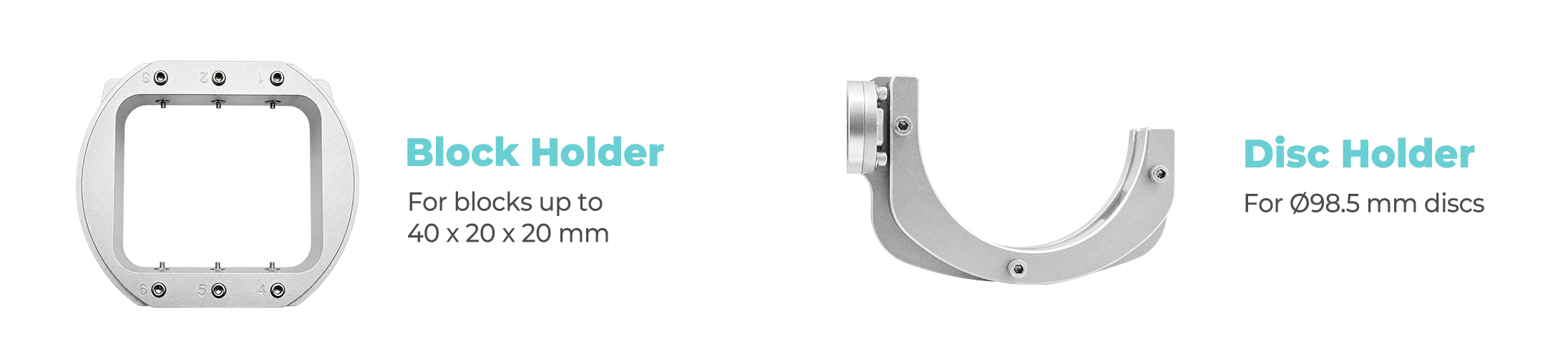

The BAOT DM7 supports both disc and block formats, offering flexibility for different dental CAD/CAM workflows.

- Disc Format: Up to Ø98.5 mm in diameter, with material heights from 10 to 30 mm.

- Block Format: Supports blocks up to 40 × 20 × 20 mm.

- Processing Mode: 5-axis simultaneous dry milling.

Q: Does the BAOT DM7 require an air compressor?

A: The DM7 features an air-free electric spindle designed to eliminate the need for a compressed-air supply for milling.

Q: What is the maximum spindle speed of the DM7?

A: The DM7 features a spindle with a maximum speed of 60,000 rpm and a rated power of 500 W.

Q: Is the DM7 suitable for both discs and blocks?

A: Yes. The DM7 accommodates discs up to 98.5 mm in diameter and 10–30 mm in height, as well as blocks up to 40 × 20 × 20 mm.

Q: How many tools can the DM7 hold?

A: The DM7 features an 11-tool magazine and supports tool-breakage detection through tool-length measurement.

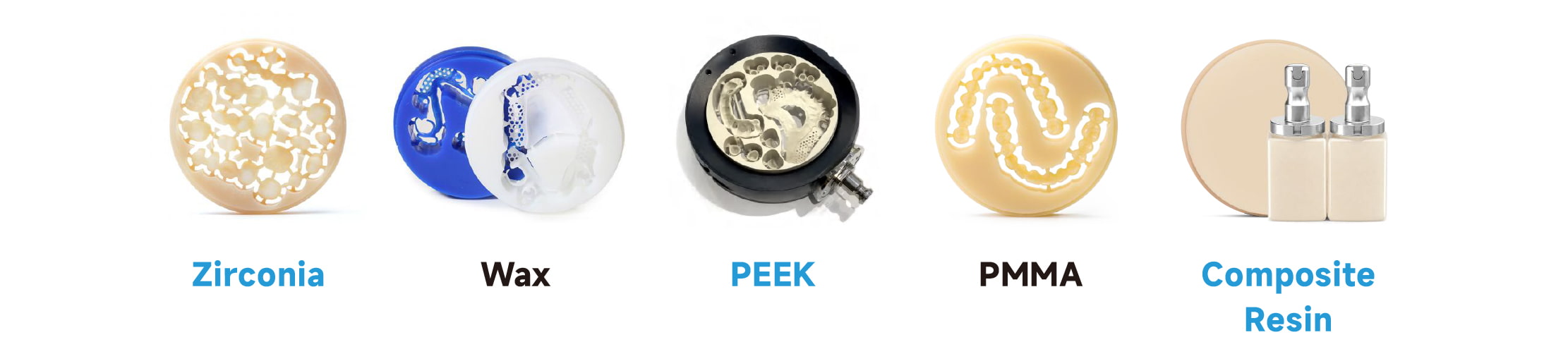

Q: What materials can the DM7 process?

A: Zirconia, Wax, PEEK, PMMA, and composite resin.

Q: What are the power supply requirements?

A: The specified input voltage is 100–240 VAC at 50–60 Hz. Please confirm the final electrical requirements and installation instructions before setup.

Q: What dust extraction system is required?

A: M-class filtration with an airflow of 2,500 L/min.
